LED DJ Booth VPL-DJ

Price range: $2,599.00 through $5,399.00

Flexible-LED DJ booth with an 88 × 38 in wraparound display running at 7,680 Hz. Rolls in on a wheeled iron cabinet and packs into a flight case. Choose your pixel pitch and GOB or Non-GOB screen. Ships from the USA.

Set-up 64×23×44 inWeight 194 lbRefresh 7,680 Hz
-
+
SKUVPL-DJ
Categories
Ships from the USAFinancing availableFlight case includedPlug & play

Wrap the DJ in a wall of light.

The VPL-DJ is a wraparound flexible-LED booth that turns any room into the main stage — an 88 × 38 in curved video canvas on a rolling road-case cabinet, running your visuals in crisp 7,680 Hz. Pick your pixel pitch and screen type above.

64×23×44inSet-up size · W×D×H
194lbWeight
88×38inDisplay area
7680HzRefresh rate
5Pixel pitches
24hUSA dispatch

01 / Configurations

Every build option, priced.

Ten builds in one booth. Pick your pixel pitch and screen type above — here’s how they compare.

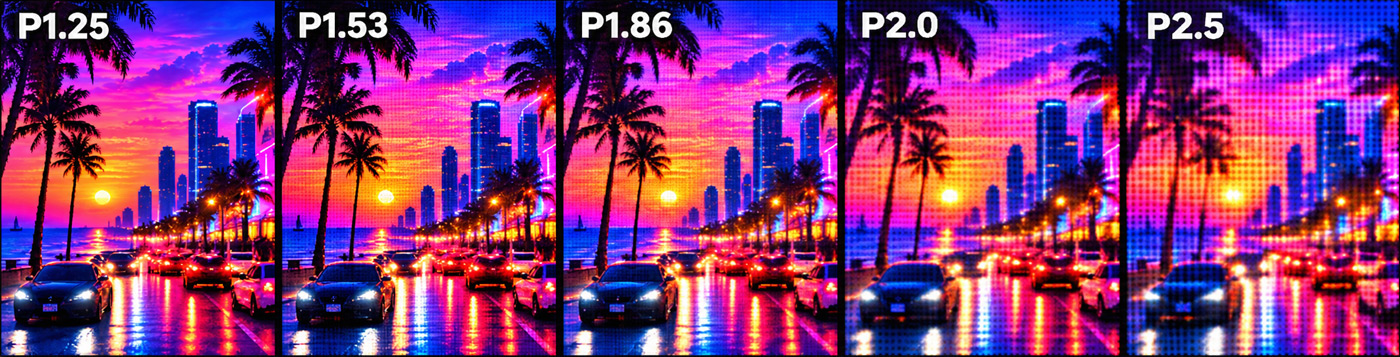

Pixel pitch and viewing-distance chart for the LED DJ booth
Pixel pitch
Best for
Non-GOB
GOB — protected
P2.5
Budget-friendly, viewed a few feet back
$2,599
$2,799
P2.0Most popular
The all-rounder most operators pick
$2,849
$3,199
P1.86
Sharper close-up detail
$2,999
$3,349
P1.53
Premium clarity for photo & video
$3,599
$4,149
P1.25
Flagship resolution, closest viewing
$4,699
$5,399

New to LED? P2.0 Non-GOB is the most popular starting point. Choose GOB if the booth travels to a lot of events; drop the pitch number for tighter, closer-up clarity.

02 / Pixel pitch

Which resolution do you need?

Pixel pitch is the millimetre gap between LEDs — smaller number, more LEDs, sharper image, closer viewing.

Larger pitch — P2.5 / P2.0

More affordable and plenty sharp when guests view the booth from a few feet back. Ideal for clubs, dance floors and rentals.

Smaller pitch — P1.53 / P1.25

Premium, near-seamless resolution that holds up in close-up photos and video, and when guests stand right next to the booth.

03 / Screen type

GOB or Non-GOB?

Every VPL-DJ configuration is available either way, so you can match your budget to how hard the booth will work.

Non-GOB — standard

The classic exposed-LED surface. Brilliant image at a lower cost. Perfect for fixed installs and careful operators.

GOB — Glue-on-Board

A clear resin is bonded over the LEDs, making the screen impact-, dust- and moisture-resistant and wipe-clean. The durability upgrade touring pros choose.

04 / Built to work

Engineered for working DJs.

The details that matter when the booth travels, sets up fast and runs night after night.

Built-in storage drawers

Optional integrated drawers keep cables, mics and controllers organised and within reach.

Foot-comfort groove

An ergonomic recess along the base lets the DJ stand naturally through long sets.

Compact footprint

A slim 64 × 23 in cabinet that fits tight stages and smaller venues without dominating the room.

Front-access maintenance

Soft LED modules service from the front — upkeep is fast, with no reaching behind the booth.

GOB anti-scratch

GOB builds bond a clear resin over the LEDs, shielding the surface from scratches and impact.

50,000-hour LEDs

Premium LED chips rated for up to 50,000 hours — years of heavy event use.

05 / Why it books

The backdrop guests film and post.

A full-motion LED wall wrapped around the DJ is free promotion every set — and a premium line-item you can rent again and again.

Upload anything. Custom visuals, sponsor logos, couple names, countdowns or a live camera feed — straight to the screen.
Camera-ready. The 7,680 Hz refresh means no scan lines or flicker in photos, videos or livestreams.
Rolls in, sets up fast. The wheeled cabinet and flight case make setup a one-person job.
Lifts your average booking. Add it to packages or rent it on its own.

Nightclubs & bars

Turn the DJ into the centerpiece with reactive, brand-able visuals.

Weddings & parties

Personalised motion backdrops that match the theme of the night.

Corporate & brand

On-screen logos, sponsors and messaging all night long.

Festivals & rentals

A durable, transportable stage upgrade with real ROI.

06 / Specifications

The full spec sheet.

Everything that ships in the flight case.

Set-up size64 × 23 × 44 in (1,630 × 580 × 1,120 mm)
Counter height33 in (840 mm)
Display area88 × 38 in (2,240 × 960 mm)
LED module12.6 × 6.3 in (320 × 160 mm)
Pixel pitchP2.5 / P2.0 / P1.86 / P1.53 / P1.25
Screen typeNon-GOB or GOB (anti-scratch)
Refresh rate7,680 Hz (industry-leading)
ControllerNova TB-40
MaintenanceFront-access soft module
CabinetSheet metal, baked-paint finish, on wheels
Power supplyBuilt-in, AC 100–240V · 5V 40A
Max power600–700W
LifespanUp to 50,000 hours
Packed size69 × 27 × 51 in (175 × 68 × 130 cm)
Package weight194 lb (88 kg)
CertificationsCE, RoHS, FCC

07 / Why Booth King

Buy it from a team you can reach.

The competition makes you request a quote. We price every configuration up front and back it up.

Ships from the USA

In stock and dispatched domestically — no multi-week overseas wait or customs surprises.

Real warranty & support

A team you can reach the same day, and replacement parts you can actually get.

Flexible financing

Spread the cost with PayPal or Klarna so the booth earns while you pay it down.

Transparent pricing

Every configuration priced up front — no “request a quote” runaround.

08 / FAQ

Before you buy.

Still unsure? Call 866-440-2256 — a real person picks up, Mon–Fri.

What’s the difference between the pixel pitch options?
The number is the millimetre gap between LEDs. Lower (P1.25) packs more LEDs for higher resolution and closer viewing; higher (P2.5) costs less and looks great from a few feet back. For most club and event use, P2.0 is the sweet spot.
Is GOB worth the extra cost?
If the booth travels to events regularly, yes. The resin coat protects the LEDs and lets you wipe the surface clean — it dramatically extends the life of a booth that gets packed and moved. For a fixed install, Non-GOB saves money.
How do I put my own visuals on it?
It plays standard video and image content, so you can run custom loops, logos, event branding or a live feed from your own controller. It works alongside your existing DJ gear.
How does it ship and set up?
It packs into a wheeled flight case (175 × 68 × 130 cm, ~200 kg) and ships from the USA. The cabinet rolls into place, powers from a standard AC outlet, and is plug-and-play.

Light up your next event.

Pick your pixel pitch and screen type above, then add to cart — ships from the USA with financing available.

Additional information

Weight 194 lbs
Dimensions 68.9 × 26.8 × 51.2 in
Pixel Pitch

P2.5, P2.0, P1.86, P1.53, P1.25

Screen Type

Non-GOB, GOB
